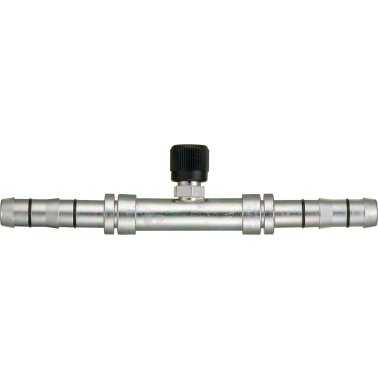

Danfoss® E-Z Clip Field Attachable Splicer 13/32 x 13/32"

7/16–20 Thread
• Make your own hose assemblies in minutes• Reduce downtime and increase productivity• Does not require hose-crimping machinery• Typical applications include: Truck and bus fleets, construction equipment, military vehicles, agricultural equipment, refrigerated trucks (dairy and produce)
7/16–20 Thread
Use with GH001 Multi-Refrigerant Hose
Assembly InstructionsStep 1: Cut the hose. Be sure the cut is made square to the hose length.Step 2: Slip on two clips.Step 3: Oil the nipple. This MUST be done to lower the force of nipple insertion.Step 4: Insert the nipple into the hose. Be sure to wipe excess oil from the nipple and hose.Step 5: Snap the cage into the groove on the nipple.Step 6: Slide the clips over the cage arms and into the channels on each arm.Step 7: Close the clips.E-Z Clip® – Completed assembly.
NOTE: Pilot O-rings are not included and must be purchased separately.
CAUTION: Failure to follow these instructions and/or the use of Weatherhead® hose with fittings supplied by other manufacturers may result in unreliable and unsafe hose assemblies, which may result in sudden or unintended escape of refrigerant gases. Personal injury and/or violations of the EPA regulations may occur as a consequence.Eaton recommends adherence to all guidelines, including EPA guidelines, concerning the services of refrigerant systems.
