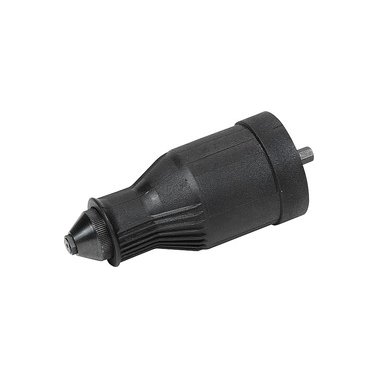

RiveDrill™ Installation Tool

• The drill attachment that easily converts cordless, electric and pneumatic drills into rivet guns
• RiveDrill™ can be quickly inserted into a 3/8" reversible power drill and can set standard pull rivets up to 3/16"
Includes 1/8", 5/32" and 3/16" nosepieces along with complete operating instructions
• Rivet Capacities: 1/8", 5/32" and 3/16" standard aluminum rivets; 1/8" and 5/32" standard steel rivets; 1/8" standard stainless steel rivets
• Hex Shank Size: 5/16"
• Weight: 0.618 lbs. (280g)
• Length: 5.5" (1,441mm)
• Dia.: 2.4" (60mm)
• Battery for Cordless Drills: 12V or larger
Operating Instructions
1. Choose correct nosepiece (1/8", 5/32" or 3/16") for blind rivet size, and thread on to end of knurled frame head.
2. Insert hex shaft into drill chuck and tighten.
3. Pull back on telescopic protective case until it stops.
4. If hole on frame head is open, reverse drill direction until hole is covered by internal jaw.
5. Set drill in forward direction, insert rivet in nosepiece, and place rivet in application.
6. Hold telescopic protective case in one hand, and pull dri
